10MHz X-Tal Parameter For Ladder Filter Design
« on: November 04, 2012, 03:22:58 PM »
   If you are technical ham radio (No bra bra.. ham),Outstanding data are useful for  X-Tal ladder filter designs.It is can be calculation of Lm,Cm,Rm,
Otherwise Cp measuring by component test set.(No required VNA)
10MHz X-Tal can be found in Thai market.Brand is KDSI.

My test equipment is VNA HP4195A using S21 for test .The measurement data as following.



73
E21qJU
Thai Ham

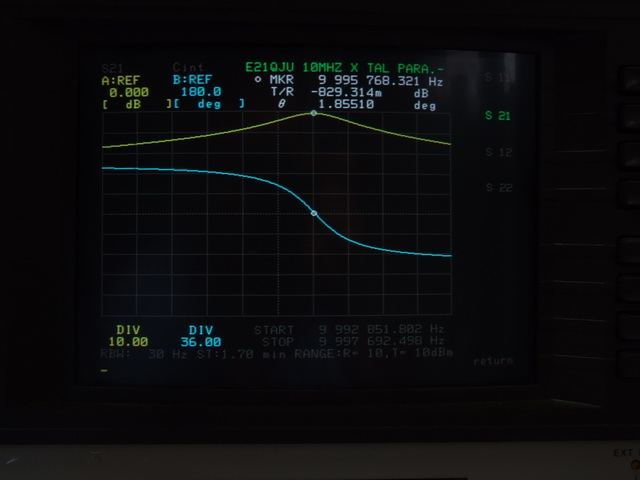

Showing series resonance.



Parallel resonance.



3 dB-Method for Lm,Cm,and Rm



« Last Edit: November 06, 2012, 02:25:54 PM by E21qJU »

Offline E21qJU

  • Sr. Member
  • ****
  • Posts: 17
  • Karma: +1/-0
  • 24 GHz Experiment
Re: 10MHz X-Tal Parameter For Ladder Filter Design
« Reply #1 on: December 08, 2012, 07:29:24 PM »
Summary

The X-Tal Parameter as following


DUT








I hope there are useful for ladder design that the X-Tal can be found in Thai
